Laurent Van Miegroet

Research:

Shape and topology optimization using the eXtended Finite Element Method (X-FEM) and a Level Set Description.

Examples of applications:

Stress minimization of a fillet in 2D

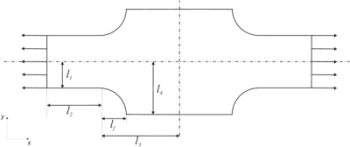

Fillet geometry in 2D and fixed mesh used during the optimization problem (1/4 of the problem is studied). The optimizable boundary is represented with a Level Set:

Optimization from intial geometry (left) to optimal geometry (right). Reduction of stress intensity factor from 1.56 to 1.12.

Volume minimization with stress constraint of a 2D rod in traction

Initial geometry:

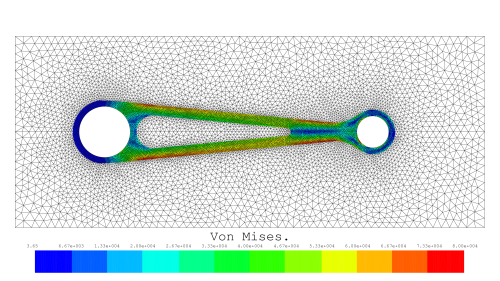

Optimal geometry with non conforming mesh adaptation (the mesh represents the design domain):

3D shape optimization of suspension arm

Animations of X-FEM and Level Set optimization

Videos

• Constructive Solid Geometry with unconforming mesh and Level Set



• Minimizing volume with stress constraints without hole



• Minimizing volume with stress constraints



• 2D rod optimization



• 3D suspension arm



• 3D Rod
